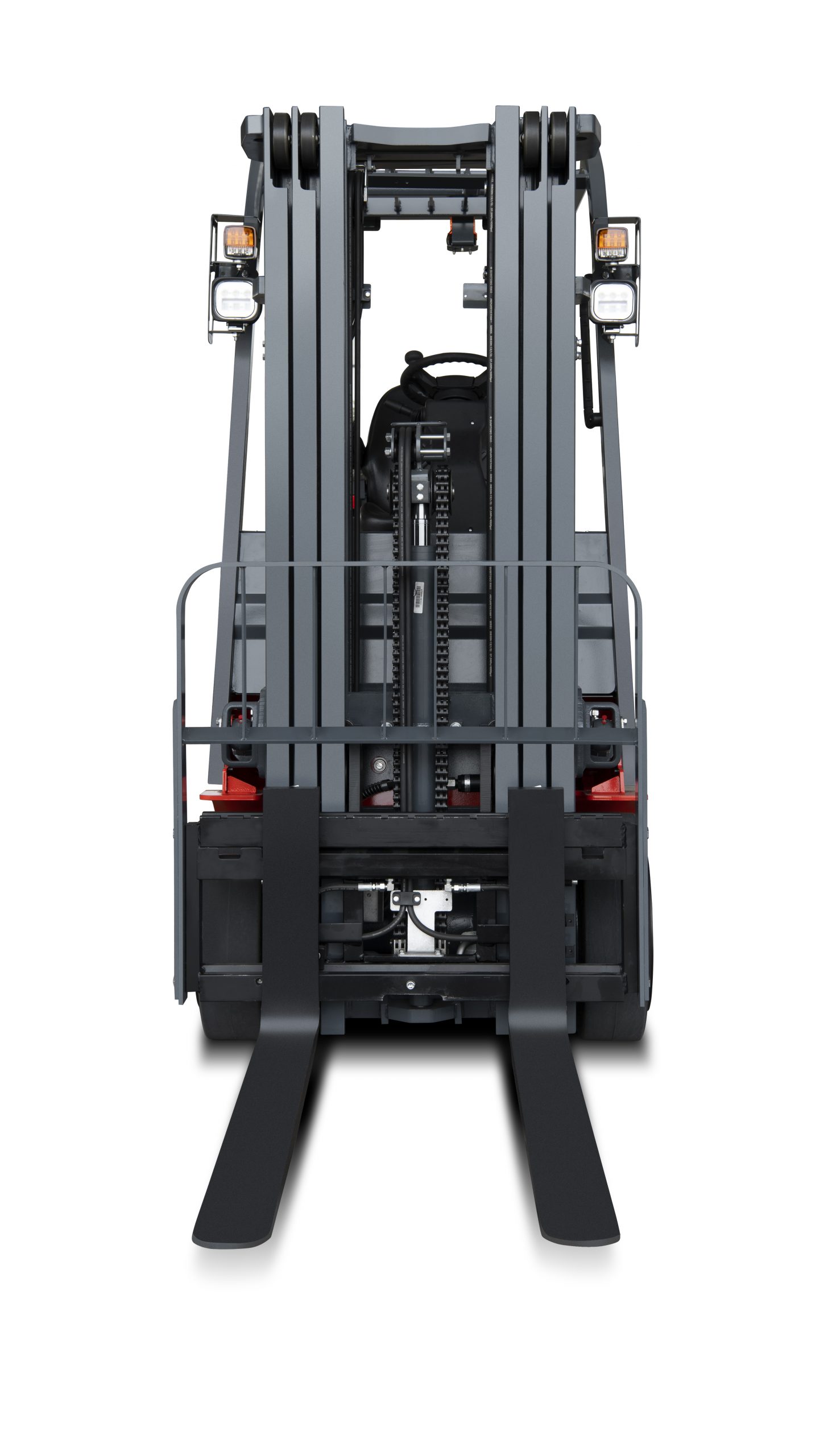

1. The position of the mast hose and cylinder is rearranged to improve the driver’s vision;

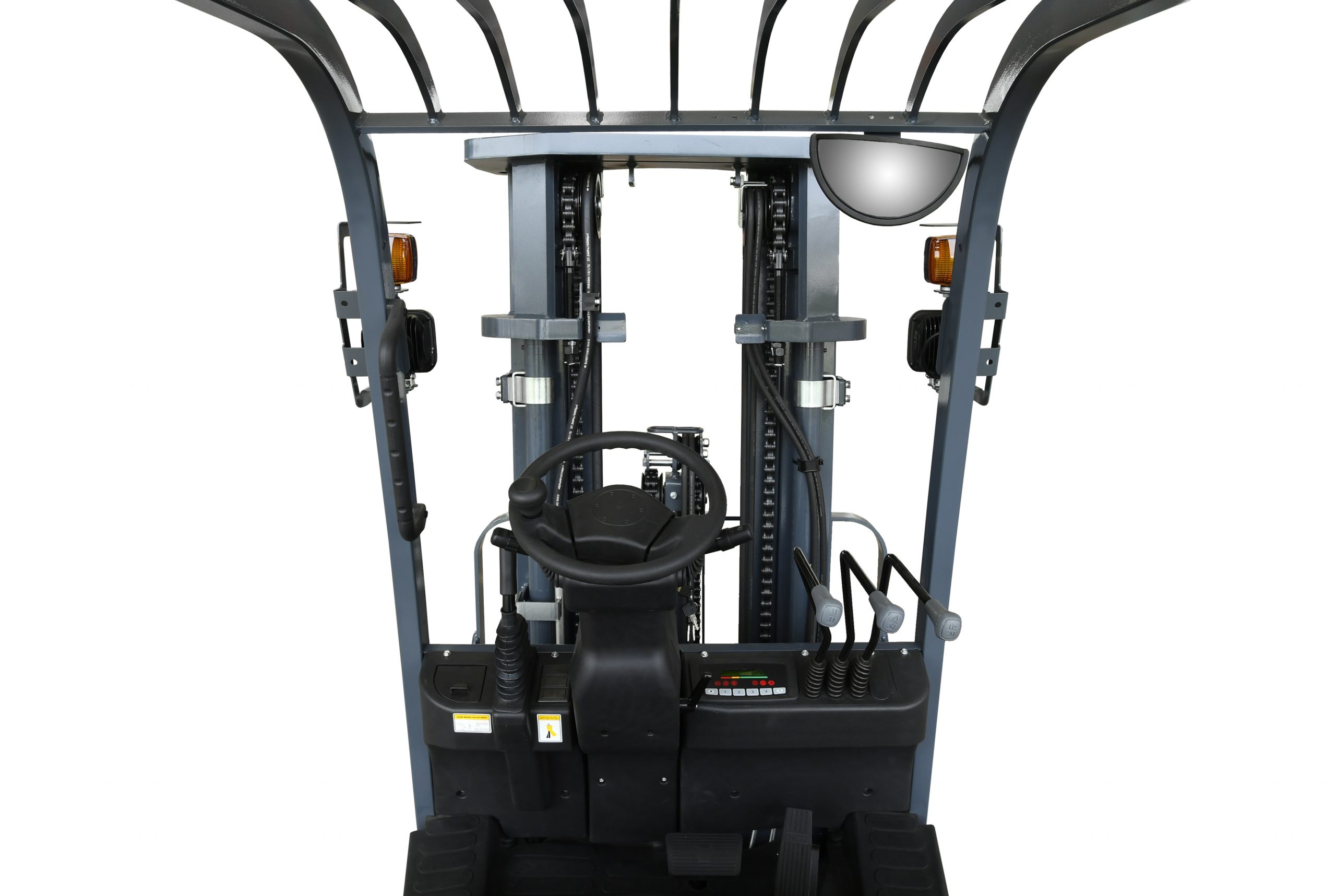

2. The large arc protection overguard and longitudinal grid plate increase the driver’s upper vision and safely observe the high cargo;

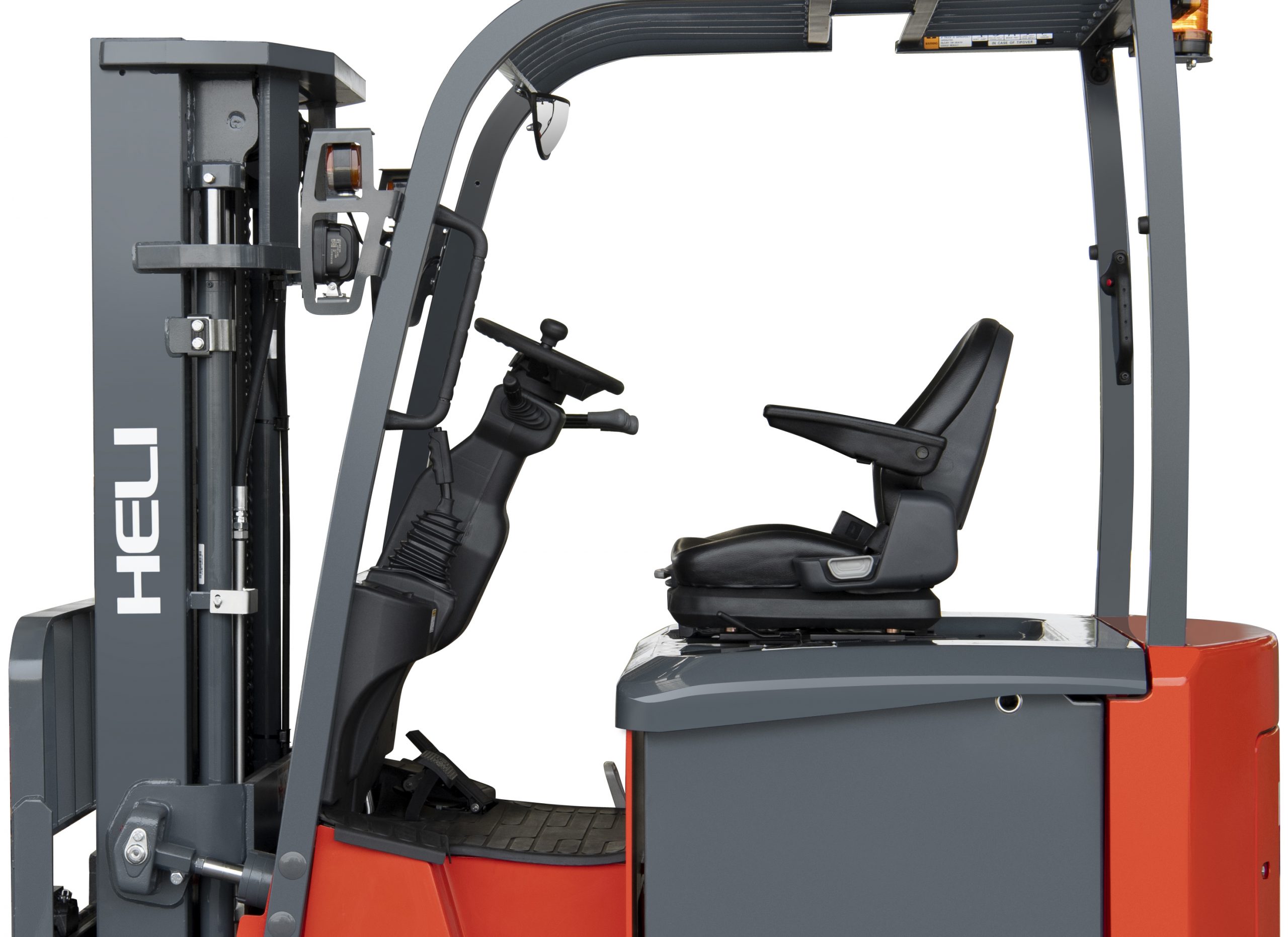

3. Both sides can get on and off, easy to use;
4. Multiple speed selection function, adapting to the operation of different occasions and working conditions;
5. Turning automatic deceleration function.
| Model designation | CP(Q)YD20C | CP(Q)YD25C | CP(Q)YD30C | CP(Q)YD32C | |
| Load capacity | kg | 2000 | 2500 | 3000 | 3200 |
| Load center | mm | 600 | 600 | 600 | 600 |
| Battery voltage | V | 80 | 80 | 80 | 80 |
| Controller | AC controller | AC controller | AC controller | AC controller | |

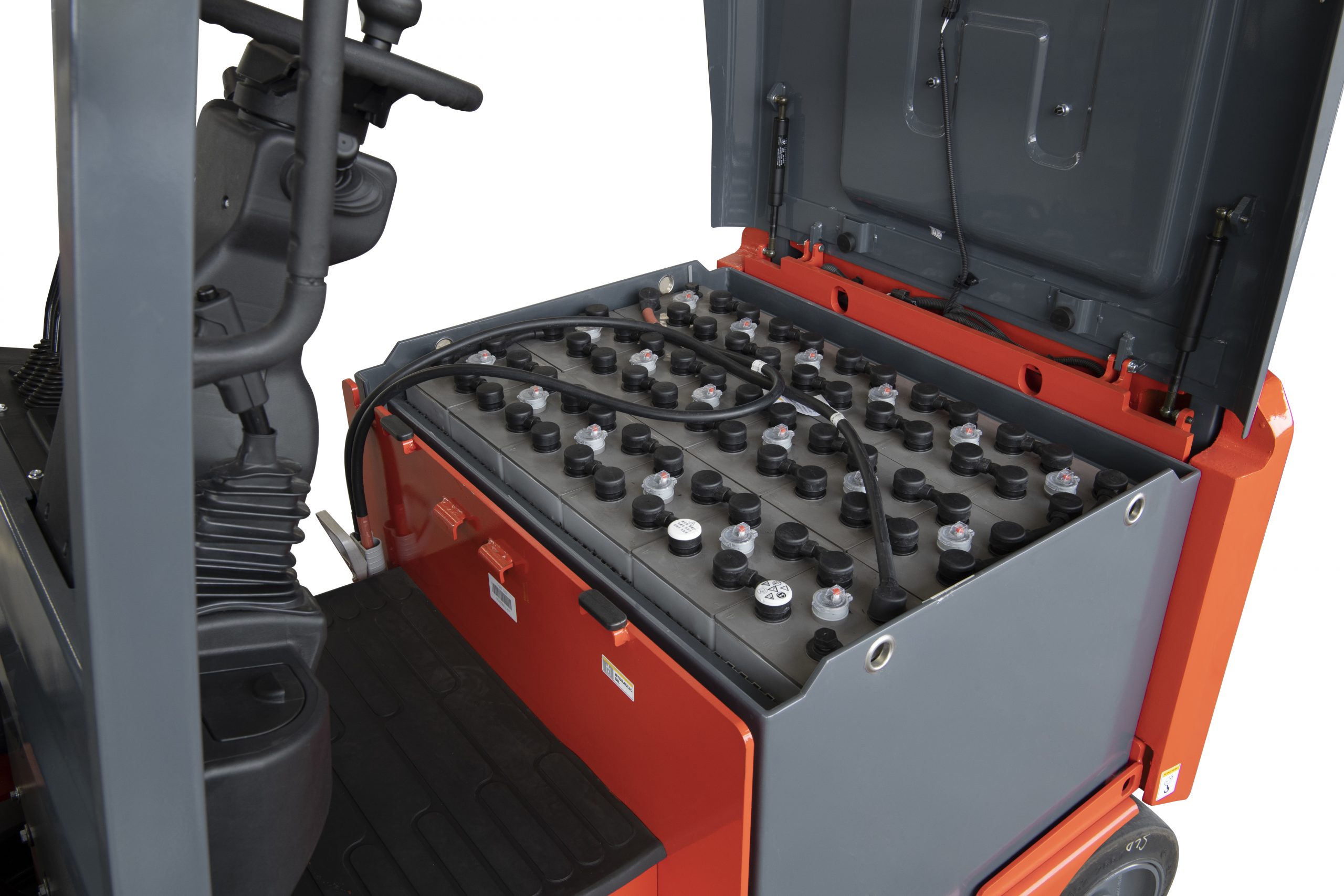

| Battery | Lithium battery | ||||
| Other | Option: Lead-acid battery | ||||
